Hygienic Stainless Steel 304/316L Manual Clamp Butterfly Valve for Dairy Pharmacy

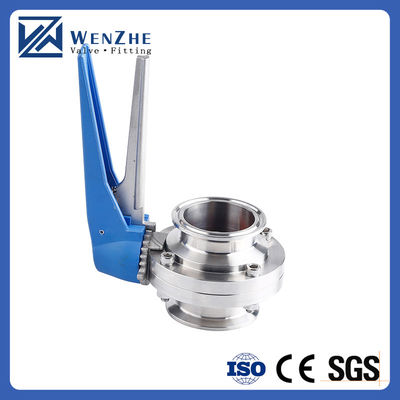

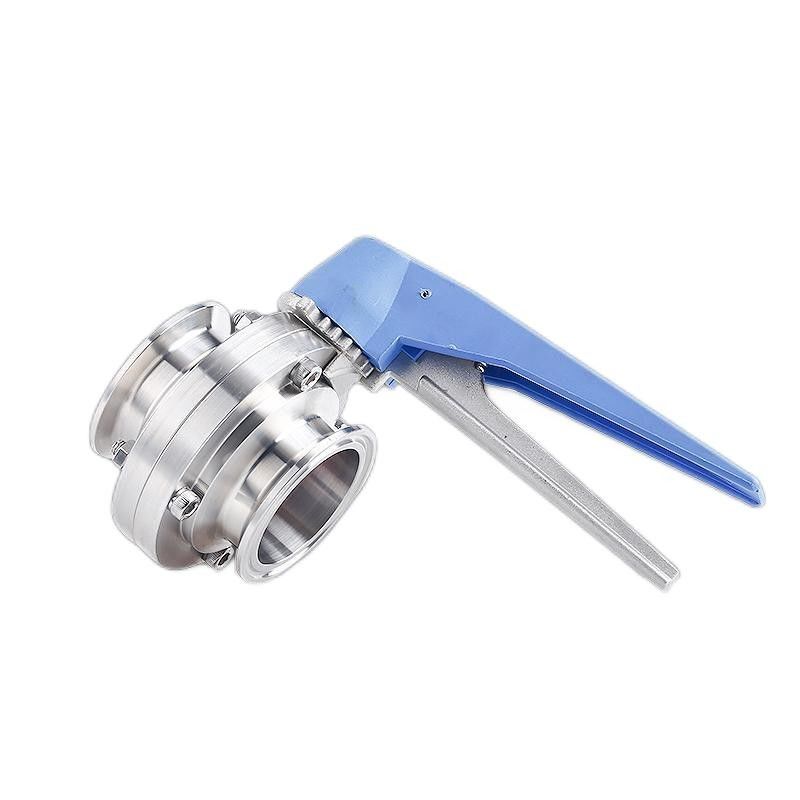

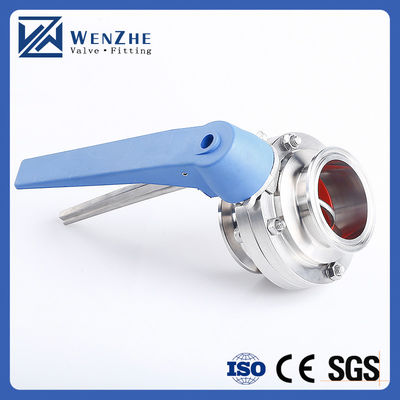

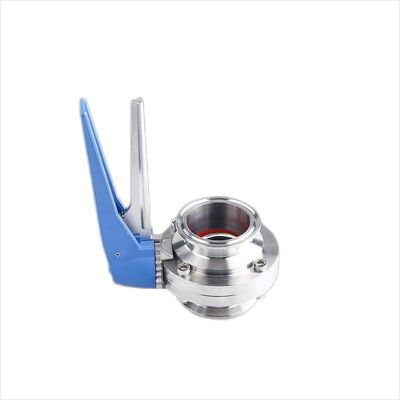

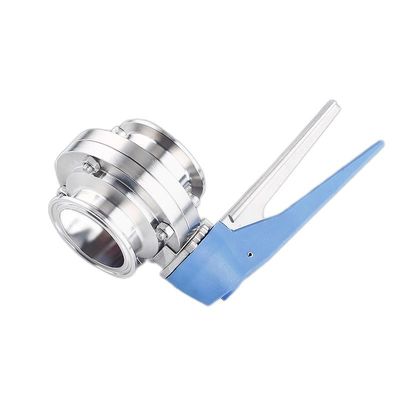

Large Image : Hygienic Stainless Steel 304/316L Manual Clamp Butterfly Valve for Dairy Pharmacy

Product Details:

Place of Origin:	Zhejiang, China

Payment & Shipping Terms:

Price:	$8.00/pieces 1-49 pieces
Packaging Details:	carton
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

Hygienic Stainless Steel 304/316L Manual Clamp Butterfly Valve for Dairy Pharmacy

Description

Application:	General	Port Size:	1/2"-8"
Warranty:	3 Years	Power:	Manual
Temperature Of Media:	Medium Temperature	Structure:	BUTTERFLY
Media:	Water	Customized Support:	OEM, ODM
Product Name:	CLAMP BUTTERFLY VALVE	Body Material:	STAINLESS STEEL
Connection:	Tri Clamp	Size:	DN15~DN200
Working Pressure:	0.2bar--10 Bar	MOQ:	1
Type:	Butterfly Valves	Port:	Shenzhen/YIWU/WENZHOU

Product Name	Stainless Steel Sanitary Manual Clamp Butterfly Valve with Plastic Gripper Handle
Valve Body Material	SS304/SS316L(Forged)
Seal Material	EPDM
Standard	DIN,3A,ISO/IDF,BS/RTJ,ASME/BPE
Surface Finishing	RA=0.8 um
Max Working Pressure	10Bar(DN25 to DN100), 8 bar(DN125 to DN150). Min pressure: 0.2 bar p.abs
Operating temperature	-10℃ to +120℃ (EPDM)
Available Size	1/2"-8",DN15-DN200
Features	Compact and robust design Manual handle,pneumatic actuator and electric actuator can be exchangeable Low pressure losses The valve body can be changeable with any kind of connection
Operated:	Manual handle,pneumatic actuator and electric actuator can be exchangeable with each
Options	Gasket： EPDM / SILICON/Buna
		Connection:weld,clamp,thread,weld thread,flange,thread-welded
		Handle: two-position handle,three-position handle,four-position pull handle,multi-position plastic handle and multi-position stainless steel handle
		Pneumatic actuator, electric actuator,pneumatic aluminum actuator
		Control: position sensor
Application scope	Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc

1. who are we?
We are based in Zhejiang, China, start from 2017,sell to North America(1.00%),South America(1.00%),Eastern Europe(1.00%),Southeast Asia(1.00%),Africa(1.00%),Oceania(1.00%),Mid East(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3.what can you buy from us?
Thread fitting,Sanitary grade fitting,Sanitary Valve,Flanges,Bend head.

4. why should you buy from us not from other suppliers?
We have 20 years experience in production and sales.

5. what services can we provide?
Accepted Delivery Terms: Small orders will be chosen by express, by the airline. Large orders will be chosen by sea. It will according to the customer’s request.
Accepted Payment Currency: USD&RMB
Accepted Payment Type: T/T, L/C,West Union.
Language Spoken: English,Chinese
6.whether the price of products is selling price ?
If it's custom products,the price of products excludes taxes and freight. If it is directly ordered products,we conclude the
business on FOB basis .

If you want to know more,please contact the seller for specific price.
