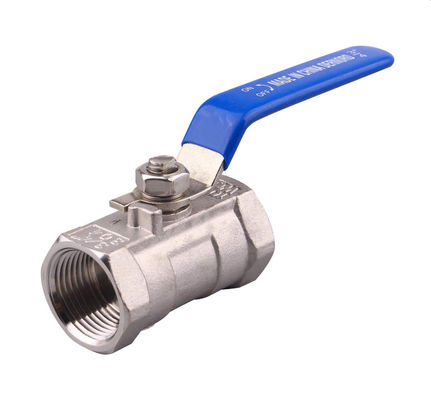

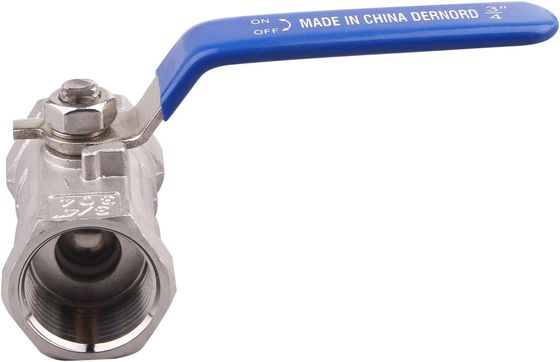

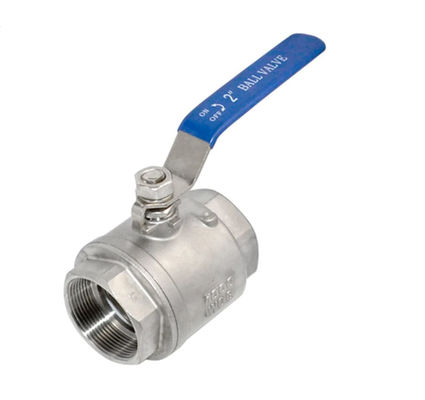

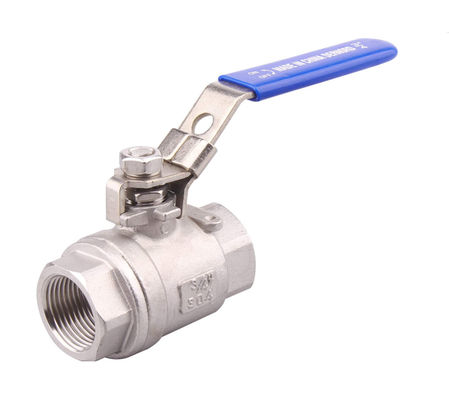

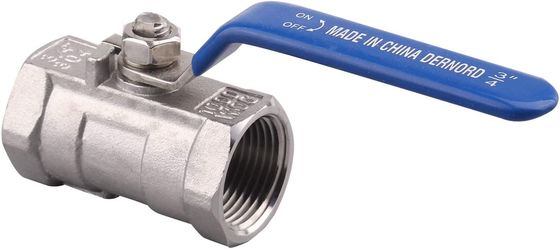

Customized Stainless Steel Ball Valve 1PC Type NPT Standard Port for Water Oil and Gas

Product Description

This ball valve is made of Stainless Steel 316 for higher corrosion resistance than Brass/copper and has a plastic-covered lever
handle for on/off manual control.
This inline valve has a Standard port flow and 2" female National Pipe Taper (NPT) threads for connecting two male threaded pipe
fittings going in the same direction.
It is pressure rated to over 600 pounds per square inch (psi) for cold working pressure (CWP), Over 150 psi for saturated steam.
Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses.Flow is allowed when the hole that pierces the
ball-shaped disc is in line with the inlet and outlet of the valve and is blocked when the ball is horizontally swiveled 90
degrees,so that the hole of the ball is perpendicular to the opening of the valve.
They are primarily used in air, gas, liquid,chemicals petroleum and steam applications.

  * Serviceable Stainless Steel Ball Valve - Can be taken apart via threads, Threaded Connector Type Female to Female NPT
* Stainless Steel 1PC Ball Valve Handle: Handle with blue vinyl insulation
* Body & Ball Type:304 Stainless Steel.Temp Range:-60 F to 450 F
* Stainless Steel 1PC Ball Valve Nominal Working Pressure:1000 WOG:Max 1000 psi for Water, Oil, Gas,
