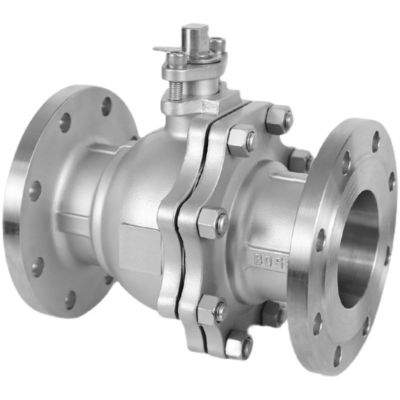

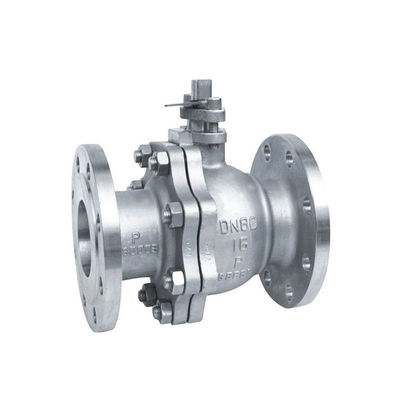

Customized Support OEM RTS Q41F-16P/25P/40P Stainless Steel 304 Float Valve for SILVER

Large Image : Customized Support OEM RTS Q41F-16P/25P/40P Stainless Steel 304 Float Valve for SILVER

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	JUFENG

Payment & Shipping Terms:

Price:	$19.68 - $573.77/pieces
Packaging Details:	carton

Contact Now

Customized Support OEM RTS Q41F-16P/25P/40P Stainless Steel 304 Float Valve for SILVER

Description

Application:	General	Port Size:	1/2"-8.0"
Warranty:	3 Years	Power:	Manual
Temperature Of Media:	Normal Temperature	Structure:	BALL
Media:	Water	Customized Support:	OEM, ODM
Product Name:	Flange Ball Valve	Material:	Stainless Steel 304
Certificate:	ISO9001,CE	Connection:	Flange Ends
Size:	1/2"~8.0"	Color:	SILVER
MOQ:	1set	Type:	BALL VALVES

item	value
Warranty	1 years
Type	BALL VALVES
Customized support	OEM, ODM
Place of Origin	China
	Zhejiang
Brand Name	JUFENG
Application	General
Temperature of Media	Normal Temperature
Power	Manual
Media	Water
Port Size	1/2"-8.0"
Structure	BALL
Product name	flange ball valve
Material	stainless steel 304
Certificate	ISO9001,CE
Connection	Flange Ends
Size	1/2"-8.0"
Color	SILVER
MOQ	1set

ss304	light-duty(mm)					(kg)
specification	valve length	flange external diameter	flange pitch-row	flange thickness	valve weight
DN15				12	2
DN20	138	99	75	13	2.4
DN25	145	106	84	13	2.8
DN32	168	128	99	13	3.8
DN40	178	136	109	13	4.6
DN50	200	148	125	14	5.5
DN65	222	170	144	15	7.9
DN80	251	185	159	16	10.6
DN100	278	207	180	16	13.6
DN125	316	237	210	18	22
DN150	358	270	240	18	29.5
DN200	395	335	295	22	50

ss304	medium-duty(mm)					(kg)
specification	valve length	flange external diameter	flange pitch-row	flange thickness	valve weight
DN15	125	91	75	16	2.4
DN20	139	102	75	16	3.2
DN25	145	113	82	16	3.6
DN32	167	133	100	17	5.2
DN40	176	140	108	17	6
DN50	200	158	124	18	7.7
DN65	218	175	144	18	10.5
DN80	246	192	159	20	13.8
DN100	281	213	179	20	17.8
DN125	319	243	206	22	26.5
DN150	359	279	240	24	36
DN200	396	332	291	25	60
